High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...

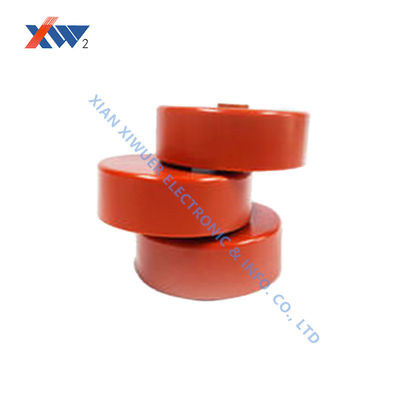

  • High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...

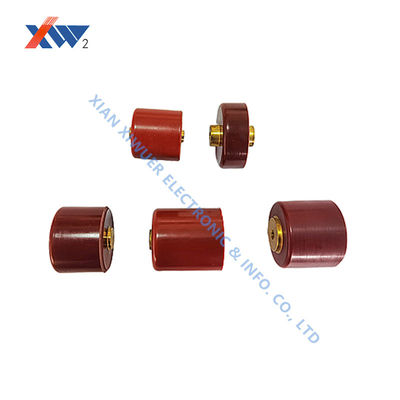

  • High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...

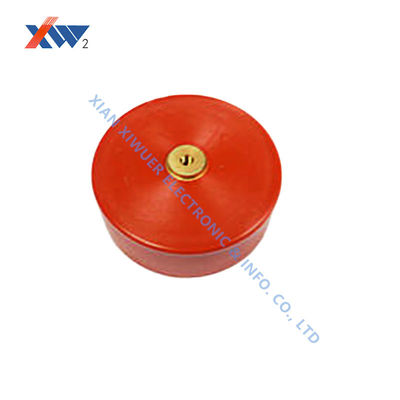

  • High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...
Lugar de origen XIAN, SHANNXI CHINA
Nombre de la marca XIWUER
Certificación ISO9001,ISO14001,OHSAS18001
Número de modelo CT8-2-30KV-1000PF
Cantidad de orden mínima 1 pieza
Precio Negociable
Detalles de empaquetado Caja de cartón
Tiempo de entrega 10-15 días
Condiciones de pago L/C, T/T
Capacidad de la fuente 4.000.000 PC al año

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Resaltar

30kV-1000pF High Voltage Doorknob Capacitor

,

30kV-2700pF HV Ceramic Capacitor

,

30kV-12000pF Doorknob Capacitor
Deja un mensaje
Descripción de producto
High-Voltage Doorknob Capacitors for Advanced Materials Processing

Essential components for plasma cleaning, magnetron sputtering, laser surface modification, and other advanced materials processing applications.

Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Precise Energy Control for Advanced Materials Processing

High-voltage doorknob capacitors serve as critical components in energy regulation and stabilization for:

  • Plasma cleaning systems
  • Magnetron sputtering equipment
  • Laser surface modification tools
Key Power Supply Requirements for Material Processing
  • Extremely stable and low noise: Ensures consistent plasma density, laser energy, and sputtering rates
  • Efficient pulse power capability: Supports high-frequency, high-energy instantaneous pulses
  • Strong load shock resistance: Maintains stability during plasma ignition and fluctuations
Core Functions in High-Voltage Power Systems
  • DC link support and filtering: Smooths high-frequency ripple for clean, stable DC high voltage
  • Pulse energy reservoirs: Stores and releases energy for high-peak power pulses
Our Capacitor Advantages
  • High energy density with rapid charge/discharge capabilities
  • Extremely low equivalent series inductance (ESL) for instantaneous energy delivery
  • Rugged epoxy resin vacuum casting with metal housing for industrial durability
  • Excellent resistance to moisture, dust, and chemical corrosion

Choosing our high-voltage doorknob capacitors ensures precision energy control for your most demanding material processing applications.
