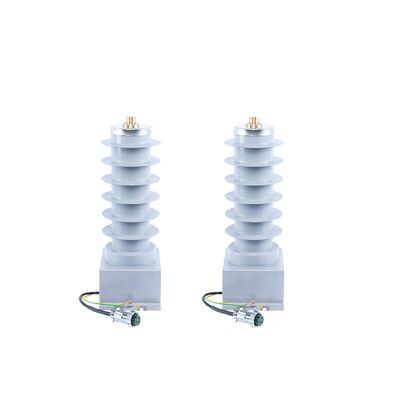

High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Smart Grid Applications

  • High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Smart Grid Applications
  • High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Smart Grid Applications
Lugar de origen Xian-China
Nombre de la marca XIWUER
Certificación ISO
Número de modelo LEDZW-12
Cantidad de orden mínima 1 unidad
Precio Negociable
Detalles de empaquetado CAJA DE CARTÓN
Tiempo de entrega 10-15 días
Condiciones de pago LC, T/T
Capacidad de la fuente 1,000, 000 unidades al año
Datos del producto
Resaltar

220VAC±10% Output Voltage High Voltage Capacitor Power Supply

,

IP67 Waterproof Level HV Ceramic Capacitor

,

Insulating Resin Potting Power Supply Device
Deja un mensaje
Descripción de producto

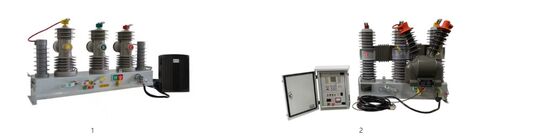

High Voltage Capacitor Power Supply-FTU/Recloser/Vacuum Circuit Breaker
High Voltage Capacitor Power Supply-FTU/Recloser/Vacuum Circuit Breaker
Product Overview
The power supply is a power supply device that directly connects the high voltage end to the device and obtains electrical energy from the output end. It is mainly composed of a capacitor unit and an electromagnetic unit, wherein the electromagnetic unit includes an intermediate transformer and a harmonic elimination circuit.
Electrical Performance Index
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67
Block Diagram and Terminal Description
High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Smart Grid Applications 0

Application Fields

  • Power System Online Monitoring: Power supply for devices such as line parameter monitoring, transmission line status monitoring, insulator contamination monitoring, power equipment fault early warning, and fault location and detection, ensuring stable operation of the power grid.
  • Smart Grid Field: Power supply for smart meters and distributed energy access monitoring devices, enabling accurate metering and energy management.
  • Maintenance and Monitoring of High-Voltage Equipment: Providing energy for monitoring devices of transformers and high-voltage switchgear to prevent faults.
  • Transportation Electrification Field: Ensuring the normal operation of power supply monitoring devices for electrified railway catenary systems, guaranteeing the safety of train power supply.
  • Industrial Automation Field: Power supply for high-voltage motor monitoring devices, improving the reliability of monitoring systems.
