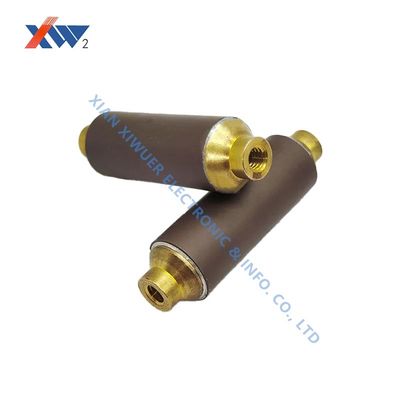

24kV 80pF High Voltage Ceramic Capacitor with 2000VAC Dielectric Strength for Live Line Indicators

  • 24kV 80pF High Voltage Ceramic Capacitor with 2000VAC Dielectric Strength for Live Line Indicators
Lugar de origen XIAN, CHINA
Nombre de la marca XIWUER
Certificación ISO9001,ISO14001,ISO45001,CCC
Número de modelo CT8-2-24KV-80pF
Cantidad de orden mínima 1 unidad
Precio Negociable
Detalles de empaquetado Caja de cartón
Tiempo de entrega 5-8 días
Condiciones de pago LC, T/T
Capacidad de la fuente 4.000.000 unidades al año
Datos del producto
Clasificación de voltaje 24000V Temperatura de almacenamiento -25°C a +85°C
Color Marrón Resistencia de aislamiento 3000MΩ
Marca XIWUER Rigidez dieléctrica 2000VAC
Material cerámico (Y5T) 2D4
Deja un mensaje
Descripción de producto
24kV 80pF Live Line Capacitor ±20% Used In Circuits To Indicate The Presence Of Voltage
Product Overview

High Voltage Ceramic Capacitor is an essential component of electric circuits, used to store electric energy and indicate the presence of voltage. This RoHS compliant capacitor features a dielectric strength of 2000VAC and radial package type. Available in brown and red colors, this 24KV 80PF Live Line Capacitor is specifically designed for high voltage circuits and indicator applications, capable of storing and releasing energy without significant loss.

Key Features
  • Product Name: High Voltage Ceramic Capacitor
  • Dielectric Strength: 2000VAC
  • Color Options: Brown, Red
  • Typical Dissipation Factor: @ 1 KHz 20° C LV ≦ 0.5% ≦2.0%
  • Ceramic Material: (Y5T)2D4
  • Live Line Capacitor 24KV 80PF for indicators
  • Live display capacitor mandrel
Technical Specifications
Parameter Details
Storage Temperature -25°C To +85°C
Tolerance ±20％
Lead Spacing 5mm
Package Type Radial
Capacitance 80pF
Typical Dissipation Factor @ 1 KHz 20° C LV ≦ 0.5% ≦2.0%
Color Brown
Size 13.2mm X 26.5mm
Voltage Rating 24000V
Ceramic Material (Y5T)2D4
Application High Voltage Ceramic Capacitor for indicators and charged displays, used in circuits to indicate the presence of voltage
Applications

XIWUER High Voltage Ceramic Capacitor CT8-2 is a reliable and economical choice for various applications. Manufactured from Y5T material, it features 3000MΩ insulation resistance, 5mm lead spacing, 1000V voltage rating, and ±20％ tolerance. This capacitor is specifically designed for Live Line Capacitor 24KV applications for indicators and live display capacitor mandrels.

With ISO9001, ISO14001, ISO45001, and CCC certifications, this product ensures safety and reliability. It offers competitive pricing with 5-8 days delivery time and carton packaging.

Customization & Ordering Details
  • Brand Name: XIWUER
  • Model Number: CT8-2-24KV-80pF
  • Place of Origin: XIAN, CHINA
  • Certification: ISO9001, ISO14001, ISO45001, CCC
  • Minimum Order Quantity: 1 unit
  • Price: Negotiable
  • Packaging Details: Carton
  • Delivery Time: 5-8 days
  • Payment Terms: L/C, T/T
  • Supply Ability: 4,000,000 units per year
Frequently Asked Questions
What is the brand name of the High Voltage Ceramic Capacitor?
The brand name is XIWUER.
What is the model number of the High Voltage Ceramic Capacitor?
The model number is CT8-2.
Where is the High Voltage Ceramic Capacitor manufactured?
The High Voltage Ceramic Capacitor is manufactured in XIAN, CHINA.
What certifications does the High Voltage Ceramic Capacitor have?
The High Voltage Ceramic Capacitor has ISO9001, ISO14001, ISO45001, CCC certifications.
What is the minimum order quantity for the High Voltage Ceramic Capacitor?
The minimum order quantity is 1 unit.
